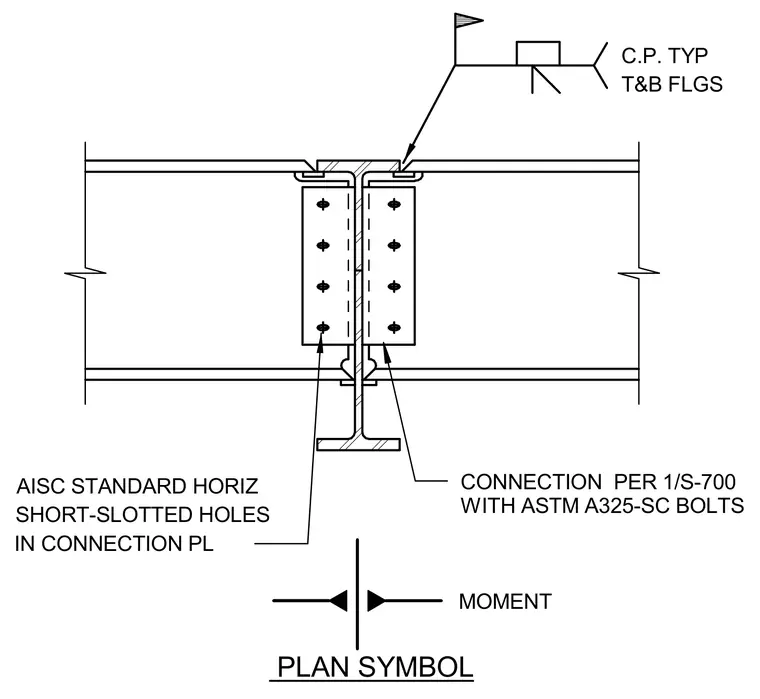

A beam-to-beam moment connection featuring top and bottom flange plates welded with complete joint penetration welds typically at both top and bottom flanges. The web connection uses plates secured with ASTM A325 slip-critical bolts installed in American Institute of Steel Construction standard horizontal short-slotted holes. The connection aligns with structural requirements specified in plan referencing standard moment connection symbols.
C.P. TYP T&B FLGS CONNECTION PER 1/S-700 WITH ASTM A325-SC BOLTS MOMENT PLAN SYMBOL AISC STANDARD HORIZ SHORT-SLOTTED HOLES IN CONNECTION PL
