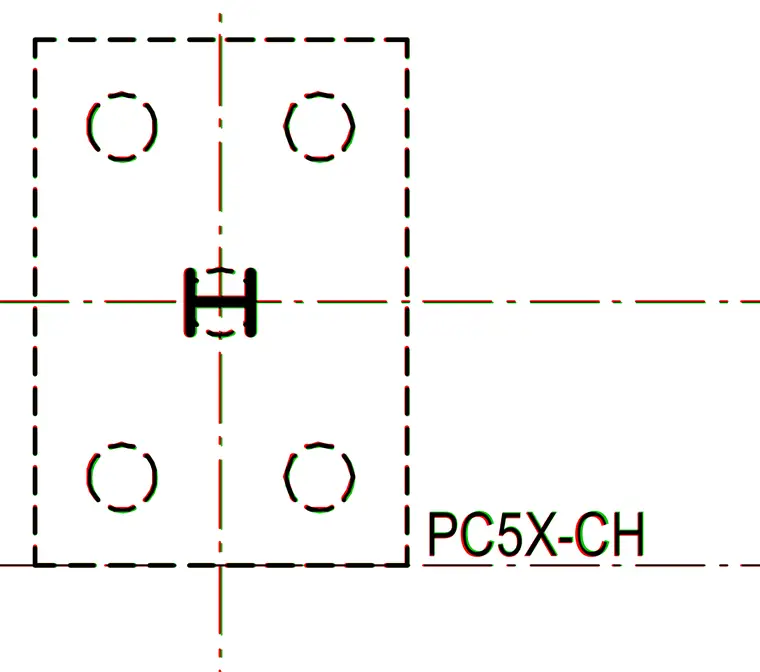

A structural column is centered on a rectangular base plate defined by dashed lines and intersecting grid centerlines. Four anchor bolts are positioned symmetrically near the corners of the plate. The assembly establishes the column location and base anchorage for structural framing support.
