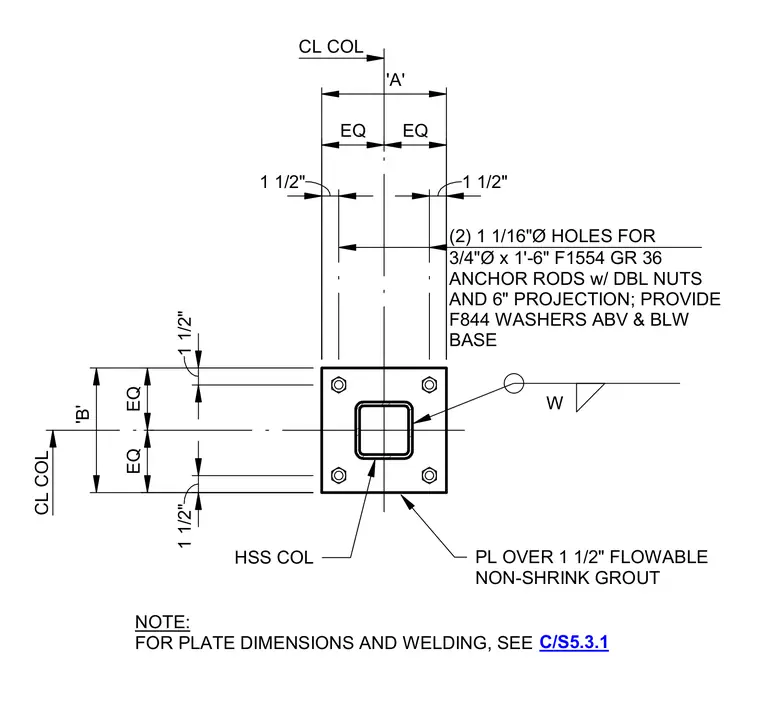

This structural plan detail shows a hollow structural section column welded to a steel base plate resting over a 1 1/2-inch layer of flowable non-shrink grout. The base plate is secured by four 3/4-inch diameter by 1 foot 6 inch long ASTM F1554 Grade 36 anchor rods with double nuts and ASTM F844 washers provided above and below the base. Each anchor rod passes through a 1 1/16-inch diameter hole in the plate. Plate dimensions and welding requirements are referenced to drawing C/S5.3.1.
HSS COL PL OVER 1 1/2" FLOWABLE NON-SHRINK GROUT NOTE: FOR PLATE DIMENSIONS AND WELDING, SEE 'A' EQ EQ 'B' EQ EQ 1 1/2" 1 1/2" 1 1/2" 1 1/2" CL COL CL COL (2) 1 1/16"Ø HOLES FOR 3/4"Ø x 1'-6" F1554 GR 36 ANCHOR RODS w/ DBL NUTS AND 6" PROJECTION; PROVIDE F844 WASHERS ABV & BLW BASE W C/S5.3.1
