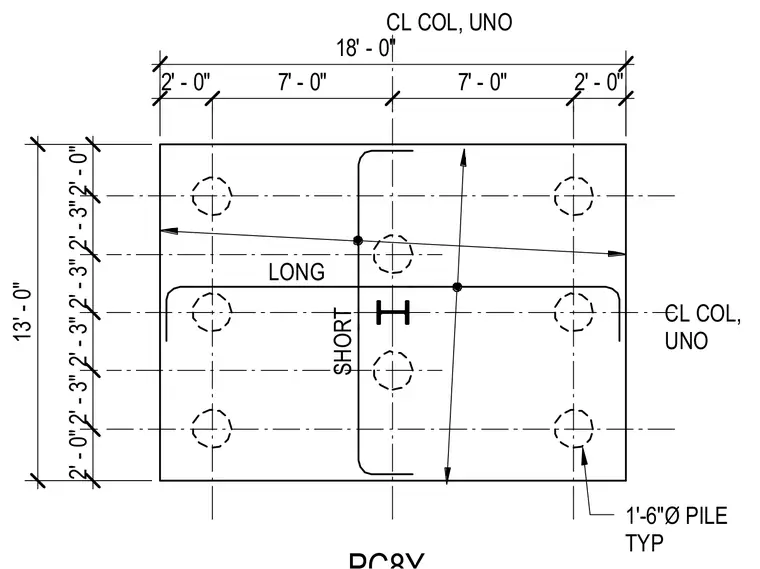

This structural plan details a rectangular pile cap measuring eighteen feet by thirteen feet, supported by eight eighteen-inch diameter piles positioned symmetrically at the perimeter and interior grid intersections. A central steel column is indicated with principal axes aligned to the foundation geometry. Reinforcing bar layouts span across the long and short directions, with pile locations dimensioned relative to the column centerline typical.
CL COL, UNO CL COL, UNO 18' - 0" 2' - 0" 7' - 0" 7' - 0" 2' - 0" 2' - 0" 2' - 3" 2' - 3" 2' - 3" 2' - 3" 2' - 0" 13' - 0" 1'-6"Ø PILE TYP SHORT LONG
