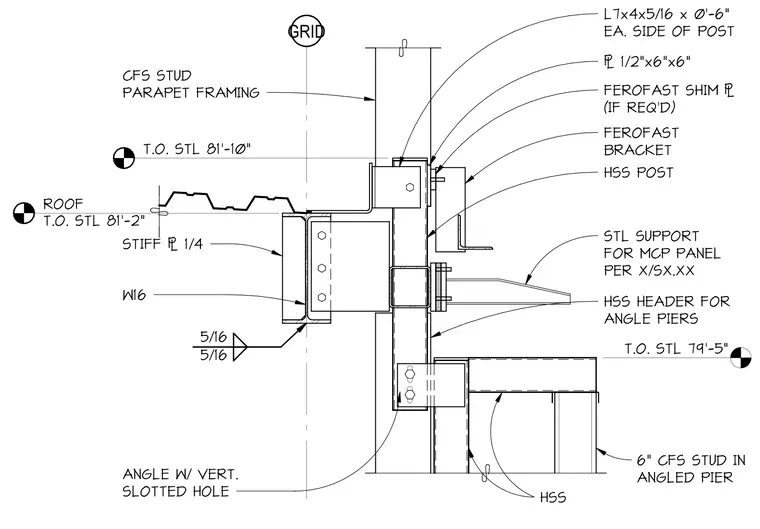

An HSS post connects to a W16 steel beam with a one-quarter-inch stiffener plate and five-sixteenth-inch fillet welds. A structural steel support for metal composite panels mounts to the HSS post using an HSS header for angle piers. Cold-formed steel stud parapet framing attaches via an L7x4x5/16 angle, a half-inch by six-inch by six-inch plate, and a Ferofast bracket with optional shims. An angle with a vertical slotted hole accommodates movement at the connection.
T.O. STL 81'-10" T.O. STL 79'-5" GRID ROOF T.O. STL 81'-2" 5/16 5/16 CFS STUD PARAPET FRAMING STIFF # 1/4 W16 ANGLE W/ VERT. SLOTTED HOLE HSS 6" CFS STUD IN ANGLED PIER HSS HEADER FOR ANGLE PIERS STL SUPPORT FOR MCP PANEL PER X/SX.XX HSS POST FEROFAST BRACKET FEROFAST SHIM # (IF REQ'D) # 1/2"x6"x6" L7x4x5/16 x 0'-6" EA. SIDE OF POST
