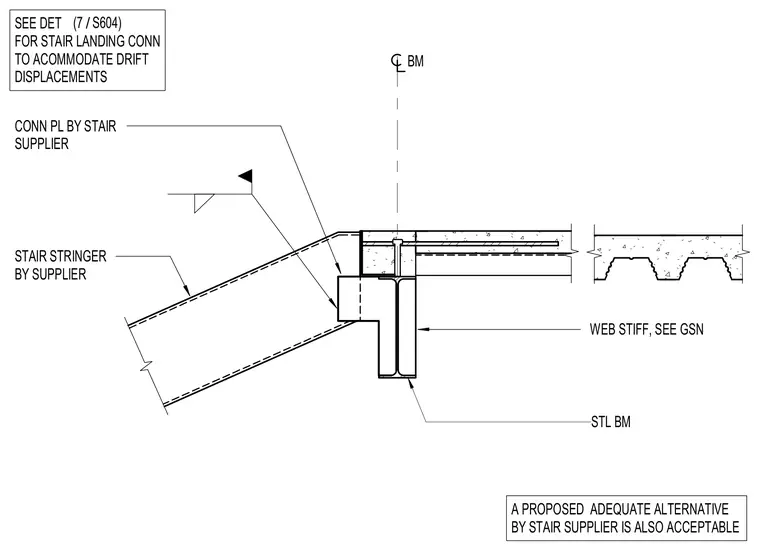

A stair stringer supplied by the manufacturer connects to a steel beam supporting a concrete floor slab on metal deck. The steel beam features a web stiffener detailed per general structural notes. A connection plate provided by the stair supplier joins the stringer to the beam assembly. A separate detail reference specifies the stair landing connection required to accommodate drift displacements.
STL BM WEB STIFF, SEE GSN STAIR STRINGER BY SUPPLIER CONN PL BY STAIR SUPPLIER SEE DET FOR STAIR LANDING CONN TO ACOMMODATE DRIFT DISPLACEMENTS BM A PROPOSED ADEQUATE ALTERNATIVE BY STAIR SUPPLIER IS ALSO ACCEPTABLE / (7 S604)
