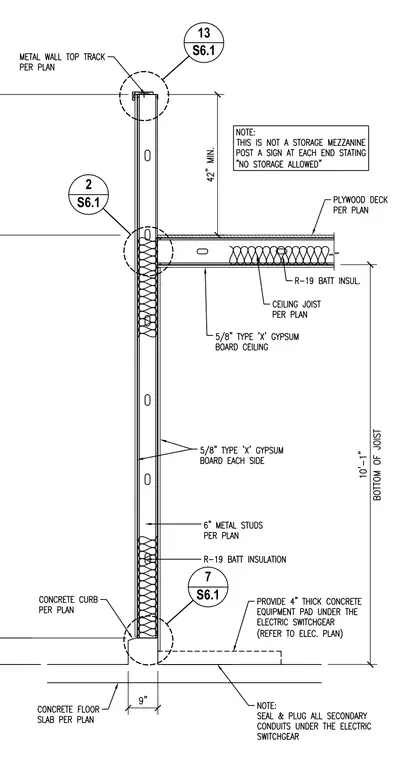

This wall section details a six-inch metal stud partition framed with five-eighths-inch Type X gypsum board on each side and R-19 batt insulation. The assembly supports an intermediate mezzanine ceiling joist carrying a plywood deck per plan, with a five-eighths-inch Type X gypsum board ceiling below and R-19 batt insulation in the cavity. A metal wall top track anchors the upper wall, and the base bears on a concrete curb and concrete floor slab per plan. A four-inch thick concrete equipment pad is specified under the electric switchgear with notes regarding secondary conduits and load limitations.
