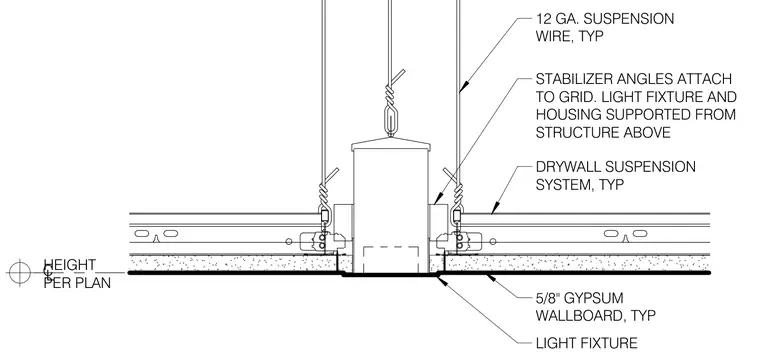

A recessed linear light fixture is integrated into a standard ceiling assembly consisting of five-eighths-inch gypsum wallboard secured to a drywall suspension system. The entire assembly is hung from the overhead structure using twelve-gauge suspension wires. Stabilizer angles attach to the grid to maintain alignment, and the light fixture and its housing are independently supported from the structure above.
5/8" GYPSUM WALLBOARD, TYP CL HEIGHT PER PLAN DRYWALL SUSPENSION SYSTEM, TYP 12 GA. SUSPENSION WIRE, TYP STABILIZER ANGLES ATTACH TO GRID. LIGHT FIXTURE AND HOUSING SUPPORTED FROM STRUCTURE ABOVE LIGHT FIXTURE
