Structural · S-B3X6B

Foundation Wall Detail at Masonry Wall

Materials

Concrete Reinforced Concrete Masonry / CMU

Elements

Columns Walls Floors / Slabs Foundations / Footings Arches Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

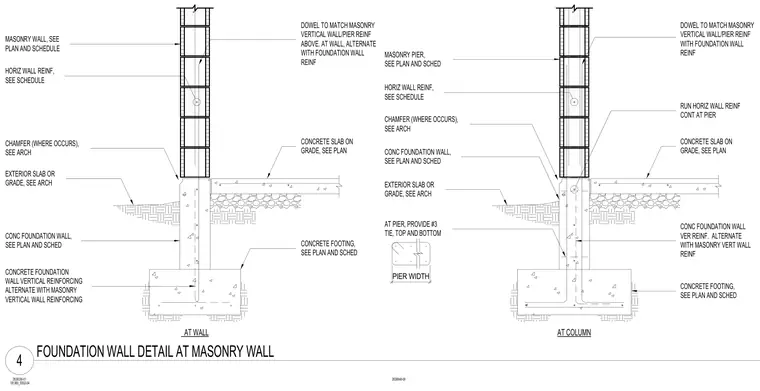

A cast-in-place concrete foundation wall and footing supports an upper masonry wall or pier and ties into the slab on grade. Vertical reinforcing dowels extend from the foundation wall to lap with the masonry vertical reinforcement above, alternating as specified on the structural plans and schedules. Horizontal wall reinforcing runs continuously through the wall and pier sections, supplemented by number three ties at the top and bottom of piers where applicable. Chamfers and exterior slab on grade conditions are coordinated per architectural drawings.
