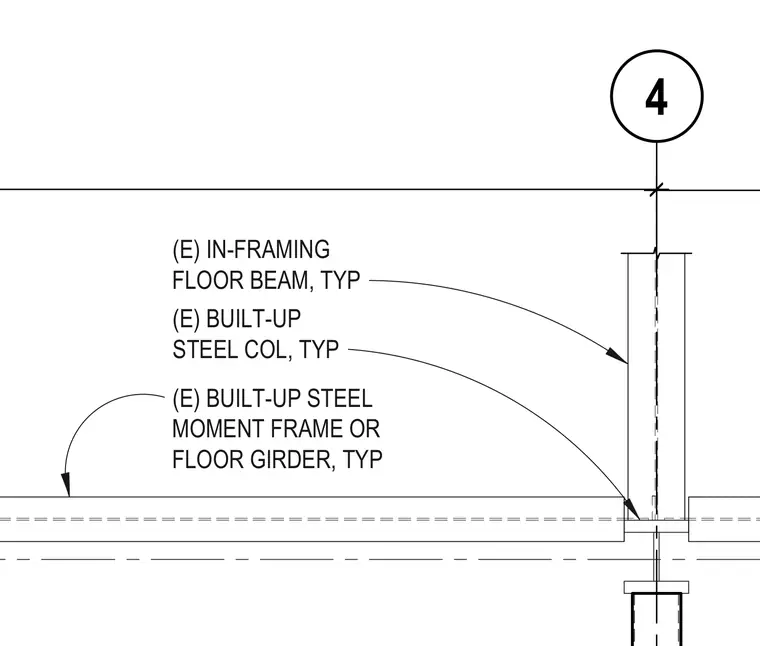

An existing built-up steel moment frame or floor girder connects to an existing built-up steel column. An existing in-framing floor beam ties into the structural column assembly typical for the framing bay. Structural elements are identified as existing components within the structural steel framing system.
(E) IN-FRAMING FLOOR BEAM, TYP (E) BUILT-UP STEEL COL, TYP (E) BUILT-UP STEEL MOMENT FRAME OR FLOOR GIRDER, TYP 4
