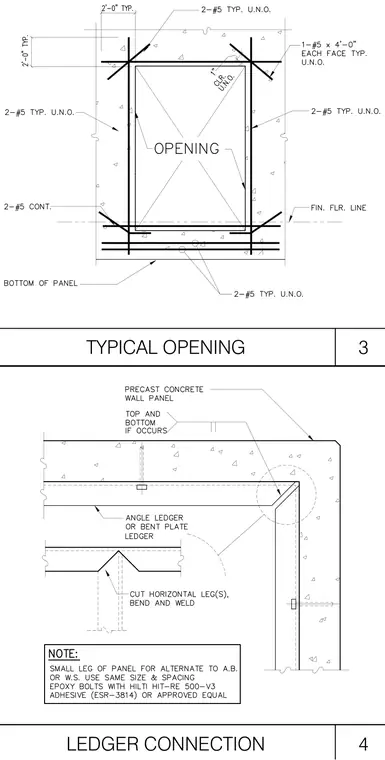

An angle ledger or bent plate ledger connects to a precast concrete wall panel at the opening. The horizontal leg of the ledger is cut, bent, and welded. Alternate anchor bolts or welded studs use the same size and spacing, secured with adhesive when required.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
