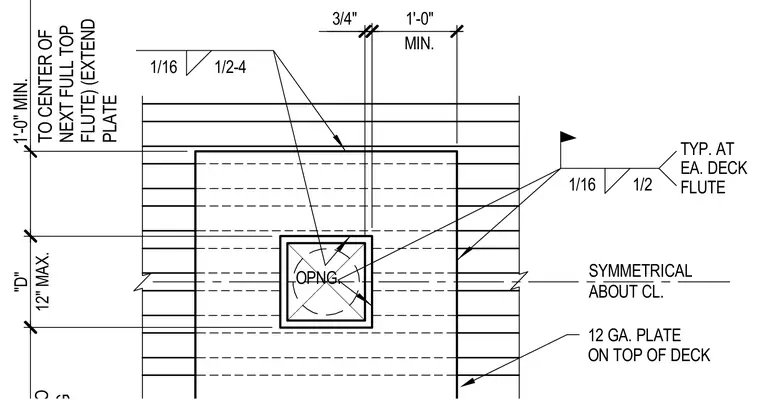

A twelve-gauge steel plate is placed on top of the metal deck to reinforce an opening. The plate extends a minimum of one foot to the center of the next full top flute beyond the opening edge. Fillet welds secure the plate at each deck flute, detailed as one-sixteenth inch welds with specific length and spacing. The opening dimension is restricted to a maximum twelve-inch width.
1/16 1/2 TYP. AT EA. DECK FLUTE SYMMETRICAL ABOUT CL. 1/16 1/2-4 OPNG. 12 GA. PLATE ON TOP OF DECK 3/4" 1'-0" MIN. "D" 12" MAX. 1'-0" MIN. TO CENTER OF NEXT FULL TOP FLUTE) (EXTEND PLATE
