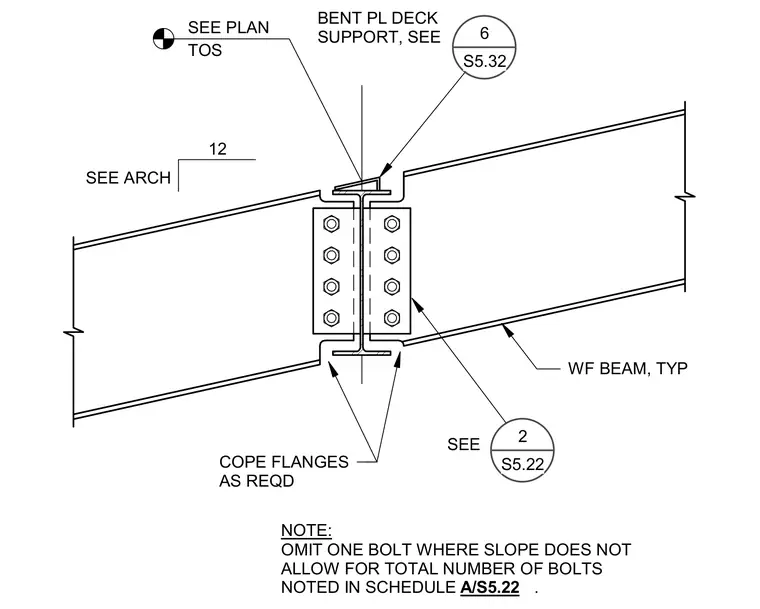

A wide flange beam connects to a supporting wide flange beam on a slope using a bolted shear tab. The flanges of the beams are coped as required to clear the connection geometry. A bent plate deck support sits atop the joint. One bolt is omitted where the slope does not allow for the total number of bolts noted in the schedule.
WF BEAM, TYP COPE FLANGES AS REQD NOTE: OMIT ONE BOLT WHERE SLOPE DOES NOT ALLOW FOR TOTAL NUMBER OF BOLTS NOTED IN SCHEDULE . BENT PL DECK SUPPORT, SEE SEE SEE ARCH 12 TOS SEE PLAN A/S5.22 2 S5.22 6 S5.32
