Structural · S-B3E6C

Tilt-Up Panel at Interior Footing

Materials

Concrete Steel Masonry / CMU

Elements

Columns Floors / Slabs Foundations / Footings Arches Bracing Anchors / Embeds Connections / Plates Reinforcing

Connections

Gusset Plate Base Plate / Anchorage Bracing Connection Welded Connection Bolted Connection Rebar Splice / Development

About this detail

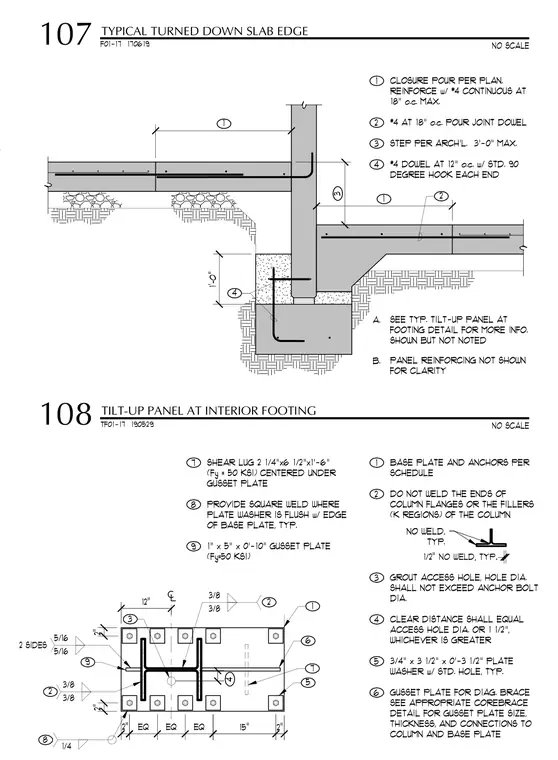

An interior footing supports a tilt-up concrete wall panel with a closure pour reinforced by number four continuous bars at eighteen inches on center maximum. A pour joint dowel of number four bars at eighteen inches on center ties the assembly together, supplemented by number four dowels at twelve inches on center with standard ninety-degree hooks at each end. Steps in the footing are limited to three feet zero inches maximum as per architectural drawings. Panel reinforcing is omitted for clarity.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
