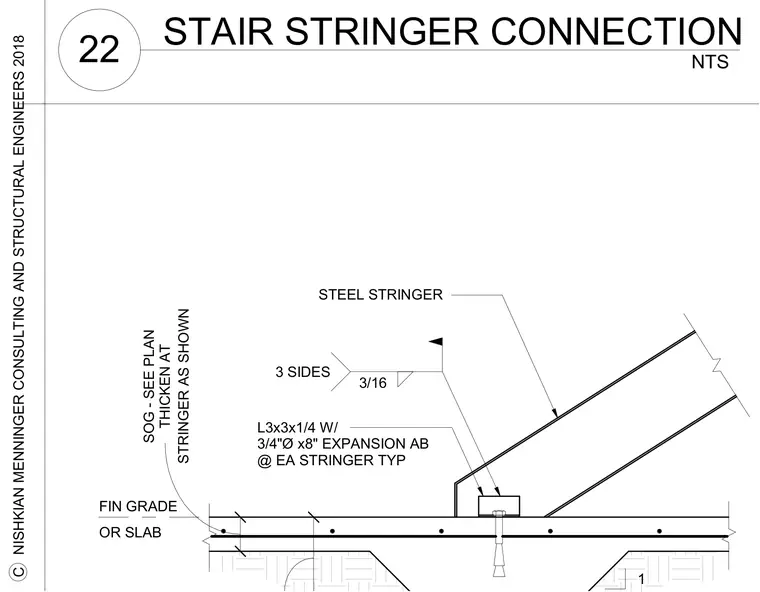

A steel stringer connects to a slab on grade or finished grade using an L3x3x1/4 angle secured by three-quarter-inch diameter by eight-inch expansion anchor bolts at each stringer typically. A three-sixteenth-inch fillet weld on three sides fastens the stringer to the angle as shown. The slab on grade is thickened at the stringer as detailed on the plan.
OR SLAB FIN GRADE 1 STEEL STRINGER L3x3x1/4 W/ 3/4"Ø x8" EXPANSION AB @ EA STRINGER TYP 3/16 3 SIDES STRINGER AS SHOWN SOG - SEE PLAN THICKEN AT C NISHKIAN MENNINGER CONSULTING AND STRUCTURAL ENGINEERS 2018 NTS 22 STAIR STRINGER CONNECTION
