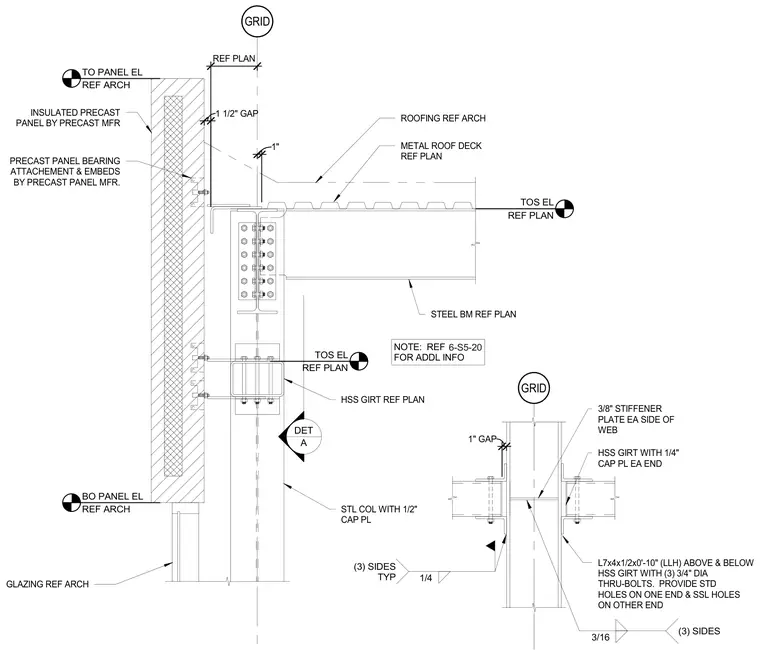

An insulated precast concrete wall panel bears against a structural steel column assembly with a one-and-a-half-inch gap at the roof edge. The roof framing consists of a metal roof deck supported by a structural steel beam connected to the column with bolts and three-eighths-inch stiffener plates on each side of the web. A hollow structural section girt is attached between the steel column and the precast panel using angles and three-quarter-inch diameter thru-bolts, providing standard holes on one end and slotted holes on the other. Additional connection details are referenced for the precast panel bearing attachments and embeds provided by the manufacturer.
GRID GRID TOS EL REF PLAN STEEL BM REF PLAN NOTE: REF FOR ADDL INFO 6-S5-20 INSULATED PRECAST PANEL BY PRECAST MFR DET A HSS GIRT WITH 1/4" CAP PL EA END L7x4x1/2x0'-10" (LLH) ABOVE & BELOW HSS GIRT WITH (3) 3/4" DIA THRU-BOLTS. PROVIDE STD HOLES ON ONE END & SSL HOLES ON OTHER END 1" GAP 3/8" STIFFENER PLATE EA SIDE OF WEB 1/4 (3) SIDES TYP 3/16 (3) SIDES STL COL WITH 1/2" CAP PL BO PANEL EL REF ARCH TO PANEL EL REF ARCH TOS EL REF PLAN HSS GIRT REF PLAN METAL ROOF DECK REF PLAN ROOFING REF ARCH 1" REF PLAN 1 1/2" GAP GLAZING REF ARCH PRECAST PANEL BEARING ATTACHEMENT & EMBEDS BY PRECAST PANEL MFR.
