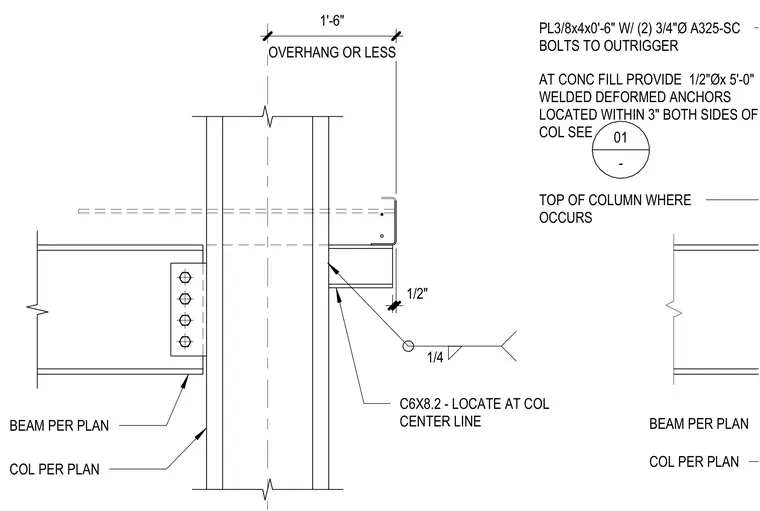

A C6X8.2 closure support channel is located at the column center line for overhangs of one foot six inches or less. A three-eighths-inch by four-inch by six-inch steel plate connects with two three-quarter-inch diameter A325-SC bolts to the outrigger. Half-inch diameter by five-foot-long welded deformed anchors are placed within three inches on both sides of the column where concrete fill occurs.
OVERHANG OR LESS 1'-6" C6X8.2 - LOCATE AT COL CENTER LINE AT CONC FILL PROVIDE 1/2"Øx 5'-0" WELDED DEFORMED ANCHORS LOCATED WITHIN 3" BOTH SIDES OF COL SEE TOP OF COLUMN WHERE OCCURS PL3/8x4x0'-6" W/ (2) 3/4"Ø A325-SC BOLTS TO OUTRIGGER 1/2" 1/4 COL PER PLAN COL PER PLAN BEAM PER PLAN 01 - BEAM PER PLAN
