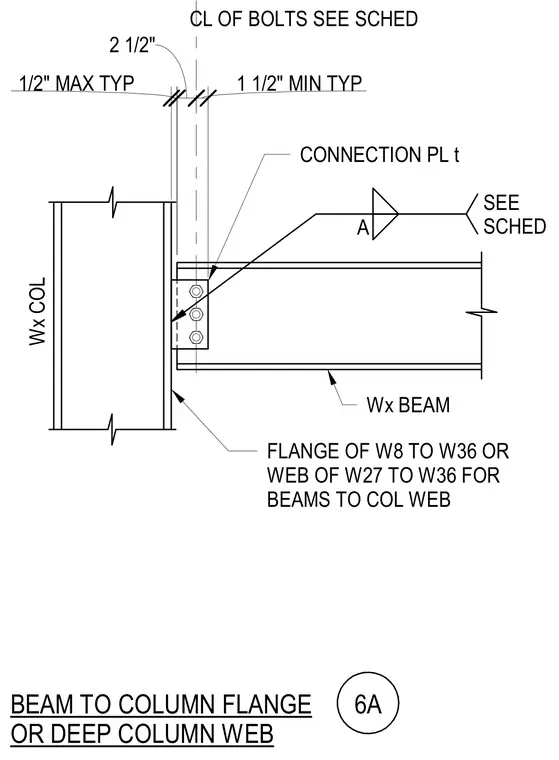

This structural steel detail shows a wide-flange beam connecting to a wide-flange column flange or deep column web. A connection plate of thickness t is welded to the beam web with a weld size specified per schedule. Three bolts fasten the connection plate to the column flange or web, aligned with a centerline of bolts. Dimensions indicate a one-and-a-half-inch minimum and a half-inch maximum typical clearance.
BEAM TO COLUMN FLANGE OR DEEP COLUMN WEB Wx COL CONNECTION PL t CL OF BOLTS SEE SCHED Wx BEAM FLANGE OF W8 TO W36 OR WEB OF W27 TO W36 FOR BEAMS TO COL WEB SEE SCHED A 2 1/2" 1 1/2" MIN TYP 1/2" MAX TYP 6A
