Structural · S-B2XES

Foundation Wall and Footing Reinforcing Section

Elements

Walls Arches Expansion / Control Joints Reinforcing

Connections

About this detail

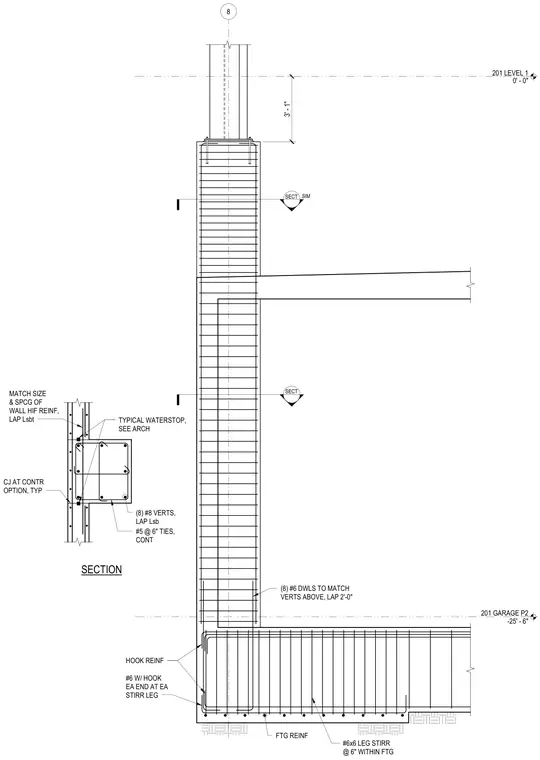

A reinforced concrete foundation wall bears on a continuous concrete footing, complete with vertical rebar, horizontal ties, and foundation dowels. The wall section includes eight number eight vertical reinforcing bars with standard lap splices, tied with continuous number five ties spaced at six inches on center. At the footing connection, eight number six dowels match the vertical wall reinforcement above with a two-foot lap splice, paired with hooked footing reinforcement and six-by-six leg stirrups spaced at six inches within the footing. A control joint option is detailed with a typical waterstop coordinated with the architectural drawings, maintaining matched size and spacing of wall reinforcement.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
