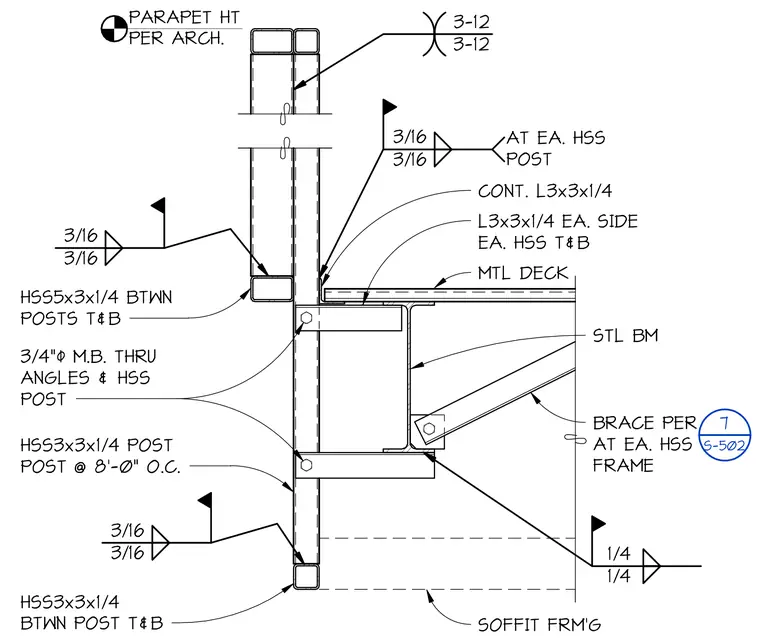

HSS3x3x1/4 vertical posts are spaced at 8'-0" on center and tied horizontally with HSS5x3x1/4 and HSS3x3x1/4 members at the top and bottom. Continuous L3x3x1/4 angles and additional L3x3x1/4 angles on each side connect the framing to the HSS posts using 3/4-inch diameter machine bolts through the angles and HSS post. A steel beam supports the metal deck with a brace configured per detail 7 on sheet S-502. Fillet welds of 3/16-inch and 1/4-inch size secure the steel connections throughout the assembly.
PARAPET HT PER ARCH. CONT. L3x3x1/4 MTL DECK SOFFIT FRM'G HSS3x3x1/4 POST POST @ 8'-0" O.C. 3/16 3/16 HSS3x3x1/4 BTWN POST T&B L3x3x1/4 EA. SIDE EA. HSS T&B 3/16 3/16 AT EA. HSS POST STL BM BRACE PER AT EA. HSS FRAME 7 S-502 1/4 1/4 3/4" , M.B. THRU ANGLES & HSS POST HSS5x3x1/4 BTWN POSTS T&B 3/16 3/16 3-12 3-12
