Continuity plates are welded inside the column flanges aligned with the beam flanges, secured with three three-quarter-inch-diameter erection bolts. A cap plate is provided at the top of the column with similar shaping, welded per the strong-axis condition. Complete joint penetration welds are specified at the top and bottom flanges with demand-critical designations per AWS D1.8. Weld access holes with a one-half-inch minimum radius are cut in the plates.

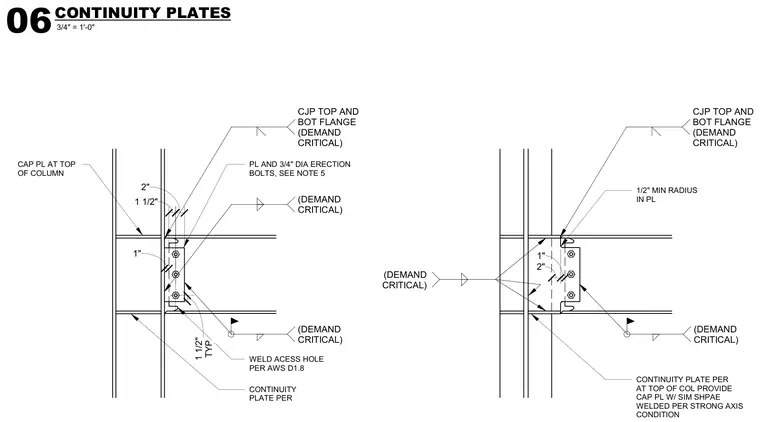

CONTINUITY PLATE PER PL AND 3/4" DIA ERECTION BOLTS, SEE NOTE 5 WELD ACESS HOLE PER AWS D1.8 CJP TOP AND BOT FLANGE (DEMAND CRITICAL) (DEMAND CRITICAL) TYP 1 1/2" 1" 2" (DEMAND CRITICAL) CONTINUITY PLATE PER AT TOP OF COL PROVIDE CAP PL W/ SIM SHPAE WELDED PER STRONG AXIS CONDITION (DEMAND CRITICAL) 1/2" MIN RADIUS IN PL CAP PL AT TOP OF COLUMN CJP TOP AND BOT FLANGE (DEMAND CRITICAL) 2" 1" (DEMAND CRITICAL) 1 1/2" 3/4" = 1'-0" 06 CONTINUITY PLATES
