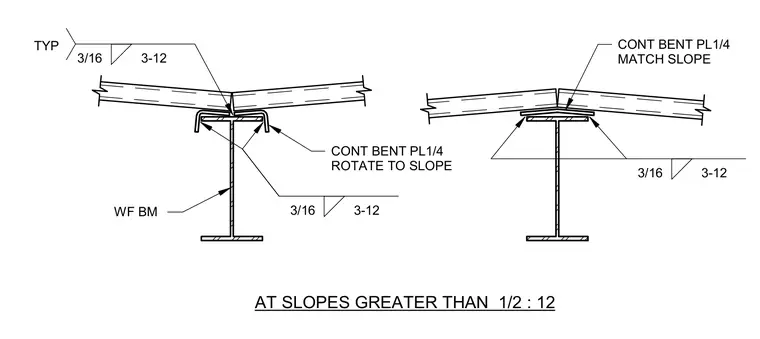

A metal deck bears on a wide flange steel beam at slopes greater than one-half to twelve. A continuous bent plate one-quarter inch thick is rotated to match the slope above the beam top flange. Another continuous bent plate one-quarter inch thick sits beneath the deck bearing condition. Three-sixteenths inch fillet welds are specified at twelve-inch spacing typically.
AT SLOPES GREATER THAN 1/2 : 12 CONT BENT PL1/4 MATCH SLOPE CONT BENT PL1/4 ROTATE TO SLOPE WF BM 3/16 3-12 3/16 3-12 TYP 3/16 3-12
