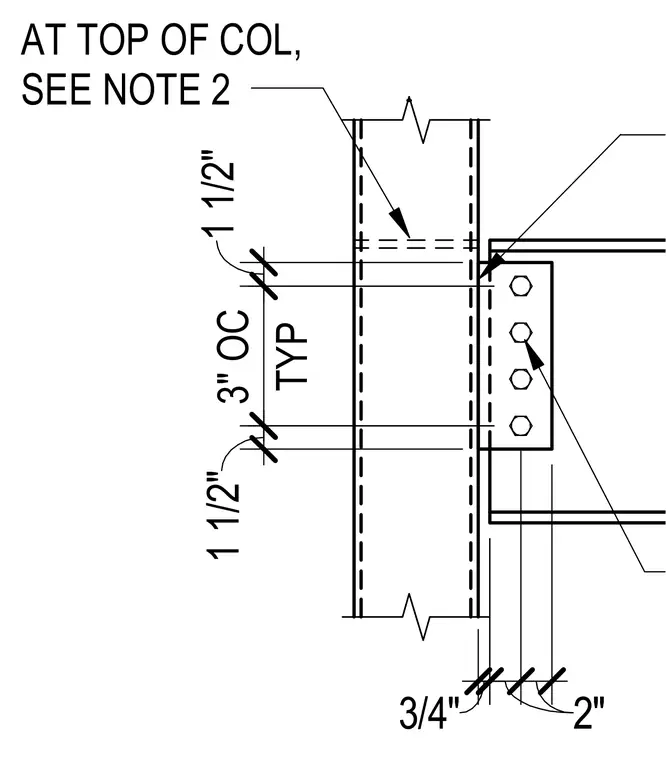

A structural steel framing detail showing a beam-to-column connection with a shear tab welded to the column flange. The connection utilizes four bolts through the beam web spaced at three inches on center, with edge distances of one and one-half inches. The column includes a horizontal note indicating work at the top of the column per note 2.
