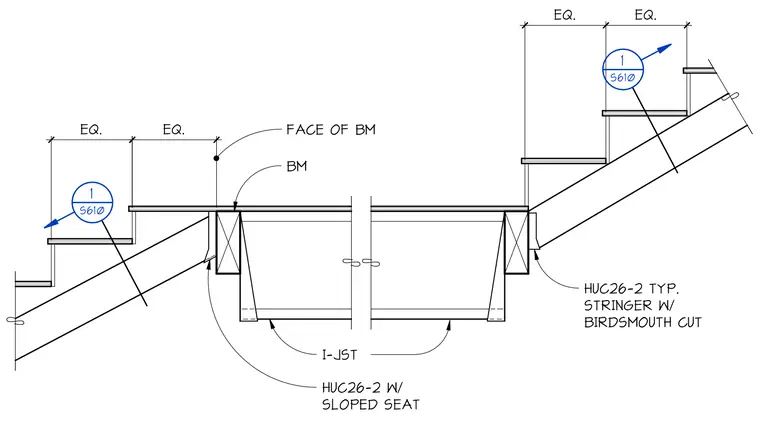

The timber stair stringer is supported by a floor beam using a HUC26-2 hanger. The stringer features a birdsmouth cut to seat properly against the hanger. The hanger is specified with a sloped seat to accommodate the stair pitch. The floor beam is positioned relative to the stair landing, with equal spacing dimensions provided for the tread layout.
