Structural · S-B2NBE

Drop-In Beam and Joist Bearing at Masonry Wall

Materials

Concrete Steel Masonry / CMU Metal (misc.)

Elements

Beams Walls Facades / Cladding Roofs Decks Arches Connections / Plates Reinforcing

About this detail

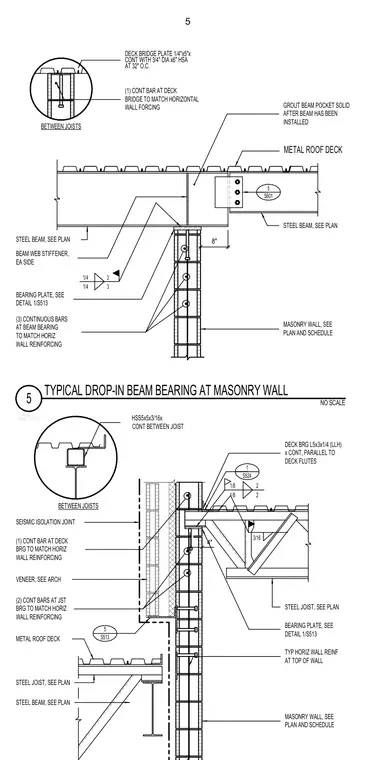

A steel beam and a steel joist bear on a masonry wall with continuous horizontal wall reinforcing. The steel beam rests on a bearing plate supported by the masonry wall, featuring beam web stiffeners on each side and a beam pocket grouted solid after installation. A deck bridge plate with heavy structural anchors connects between joists at the roof deck. A separate detail shows a steel joist bearing with a continuous angle parallel to the deck flutes and an HSS section forming a seismic isolation joint. Continuous reinforcing bars are placed in the masonry wall at the beam and joist bearings to match the horizontal wall reinforcing.
