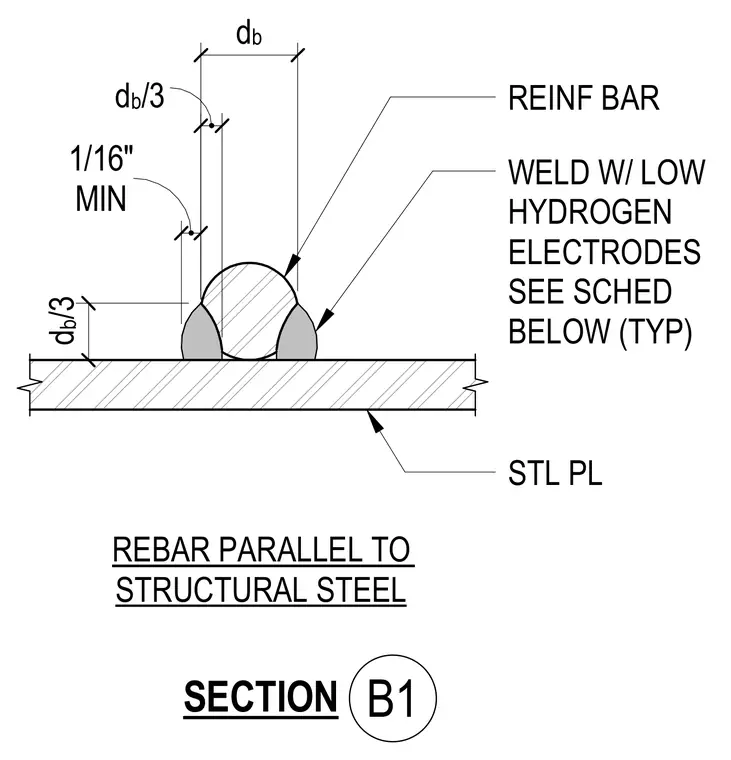

A reinforcing bar is welded parallel to a structural steel plate using low-hydrogen electrodes. The fillet welds are proportioned with a minimum size of one-sixteenth inch and dimensioned relative to the bar diameter. Spacing and dimensions are set at one-third of the bar diameter for both weld leg size and throat clearance. The steel plate provides the base support for the welded reinforcing bar assembly.
REINF BAR STL PL SECTION REBAR PARALLEL TO STRUCTURAL STEEL WELD W/ LOW HYDROGEN ELECTRODES SEE SCHED BELOW (TYP) B1 MIN 1/16" d b /3 d b /3 d b
