Incoming Brace to Column Web and Flange Anchor Rod Configuration

Materials

anchor

Elements

Columns Bracing Anchors / Embeds Connections / Plates

Connections

Gusset Plate Base Plate / Anchorage Bracing Connection Welded Connection

About this detail

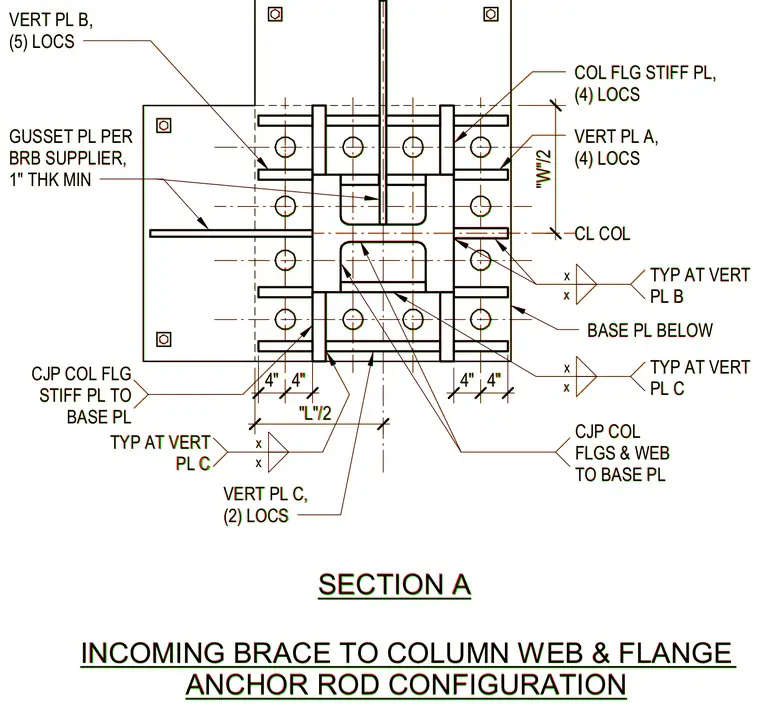

An incoming brace connects to a column web and flange with an anchor rod configuration and base plate below. The assembly features column flange stiffener plates, vertical plates in multiple locations, and a gusset plate provided by the buckling-restrained brace supplier with a one-inch minimum thickness. Complete joint penetration welds secure the column flanges and web to the base plate and column flange stiffener plates. Anchor rod locations are detailed with specified clearances and dimensions relative to the column centerline.
