Structural · S-B2CS9

WT Shape Beam Elevation and Stiffener Plate Connection Details

Materials

Elements

About this detail

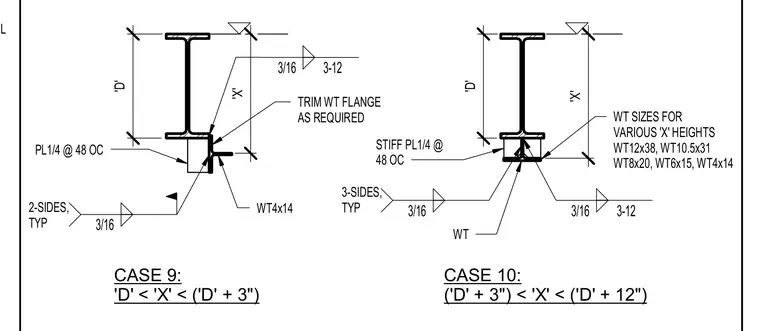

Two distinct structural cases illustrate WT shape attachments to steel beams for various height conditions designated as X and D. Case 9 features a WT shape welded to the beam flange with a quarter-inch plate spaced at forty-eight inches on center, where the WT flange is trimmed as required. Case 10 details a central WT profile connection utilizing quarter-inch stiffener plates at forty-eight inches on center with three-sided typical fillet welds. Both configurations specify multiple WT sizes including WT12x38, WT10.5x31, WT8x20, WT6x15, and WT4x14 depending on the height requirements.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
