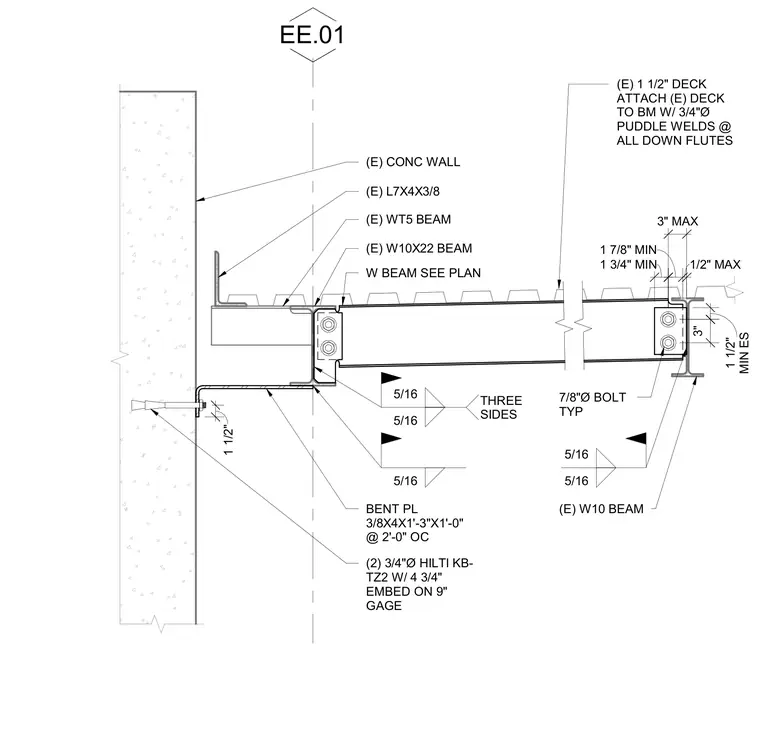

This seismic gap infill detail frames from an existing concrete wall to an existing W10 beam using a W10X22 infill beam and a WT5 beam. The structural connection features a bent plate measuring 3/8 inch by 4 inches by 1 foot 3 inches by 1 foot zero inches spaced at 2 feet on center, anchored to the concrete wall with two 3/4 inch diameter Hilti KB-TZ2 anchors with a 4-3/4 inch embedment on a 9-inch gauge. An angle section L7X4X3/8 connects the framing assembly. The steel deck is attached to the beam with 3/4 inch diameter puddle welds at all down flutes spaced at a maximum of 3 inches, supporting a 1-1/2 inch metal deck.
EE.01 BENT PL 3/8X4X1'-3"X1'-0" @ 2'-0" OC (2) 3/4"Ø HILTI KB- TZ2 W/ 4 3/4" EMBED ON 9" GAGE 5/16 5/16 THREE SIDES 5/16 5/16 1/2" MAX 1 7/8" MIN 1 3/4" MIN MIN ES 1 1/2" 3" (E) W10X22 BEAM 5/16 (E) WT5 BEAM (E) L7X4X3/8 W BEAM SEE PLAN 7/8"Ø BOLT TYP 1 1/2" (E) CONC WALL (E) 1 1/2" DECK ATTACH (E) DECK TO BM W/ 3/4"Ø PUDDLE WELDS @ ALL DOWN FLUTES 3" MAX (E) W10 BEAM
