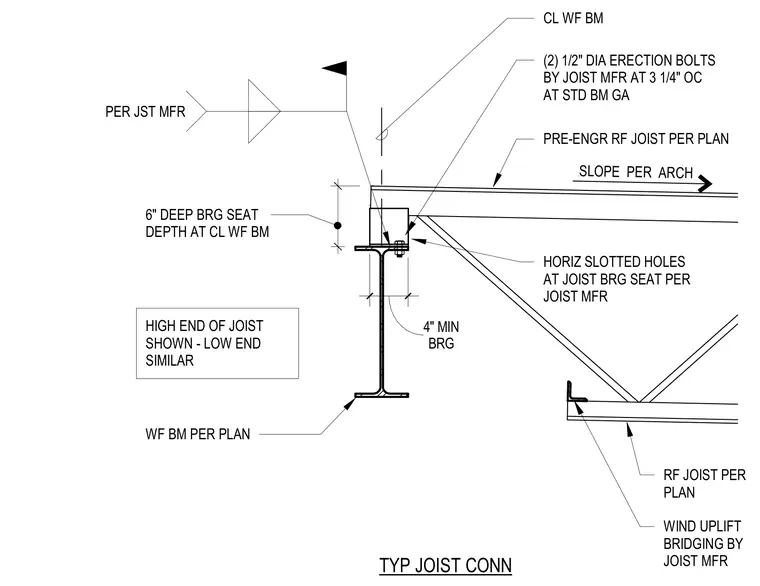

A pre-engineered roof joist bears on a wide flange steel beam with a six-inch deep bearing seat and four-inch minimum bearing. The connection utilizes two half-inch diameter erection bolts by the joist manufacturer at three and a quarter inches on center at a standard beam gauge. Horizontal slotted holes are provided at the joist bearing seat per the joist manufacturer. Wind uplift bridging is supplied by the joist manufacturer. The high end of the joist is shown with the low end being similar.
PER JST MFR RF JOIST PER PLAN WF BM PER PLAN TYP JOIST CONN BRG 4" MIN WIND UPLIFT BRIDGING BY JOIST MFR HORIZ SLOTTED HOLES AT JOIST BRG SEAT PER JOIST MFR SLOPE PER ARCH PRE-ENGR RF JOIST PER PLAN (2) 1/2" DIA ERECTION BOLTS BY JOIST MFR AT 3 1/4" OC AT STD BM GA 6" DEEP BRG SEAT DEPTH AT CL WF BM HIGH END OF JOIST SHOWN - LOW END SIMILAR . CL WF BM
