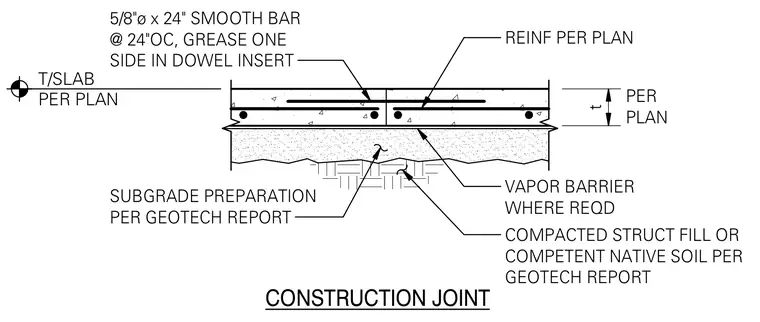

A concrete slab-on-grade construction joint features five-eighths-inch diameter by twenty-four-inch smooth steel dowels spaced at twenty-four inches on center, with one side greased and installed in a dowel insert. Reinforcing steel is placed per plan within the slab of thickness t per plan, sitting above a vapor barrier where required. The slab bears on compacted structural fill or competent native soil, with subgrade preparation performed per the geotechnical report.
REINF PER PLAN VAPOR BARRIER WHERE REQD COMPACTED STRUCT FILL OR COMPETENT NATIVE SOIL PER GEOTECH REPORT SUBGRADE PREPARATION PER GEOTECH REPORT CONSTRUCTION JOINT 5/8"ø x 24" SMOOTH BAR @ 24"OC, GREASE ONE SIDE IN DOWEL INSERT PER PLAN t T/SLAB PER PLAN
