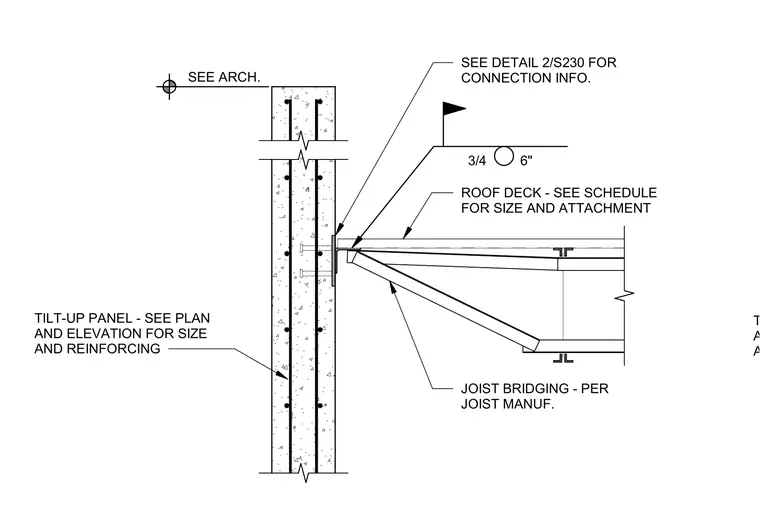

The steel joist bears against a tilt-up concrete wall panel, with the connection details referenced to detail 2/S230. The roof deck is attached to the top chord of the joist, with deck size and attachment specified in the project schedule. A field weld is indicated for the deck attachment, specified as a three-quarter inch diameter puddle weld at six inches on center. Joist bridging is installed per the joist manufacturer's requirements. The tilt-up panel size and reinforcing are determined per the structural plan and elevation.
