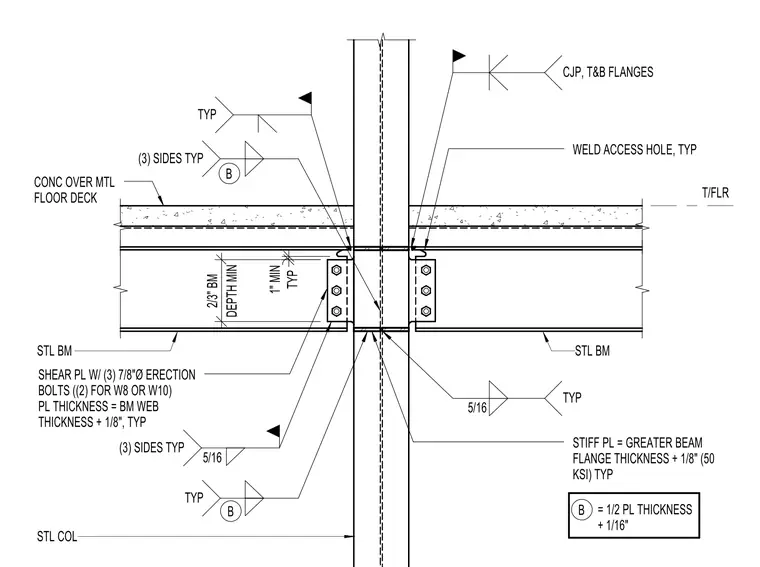

A steel beam frames into a steel column away from braced bays, utilizing a shear plate connection with three seven-eighths-inch diameter erection bolts, reduced to two bolts for W8 or W10 shapes. The shear plate thickness equals the beam web thickness plus one-eighth inch, while complete-joint-penetration welds connect the top and bottom flanges. Stiffener plates fabricated from fifty KSI steel match the greater beam flange thickness plus one-eighth inch. Additional five- sixteenth-inch fillet welds are applied on three sides as specified. A concrete over metal floor deck assembly bears near the top of the connection with standard clearances and weld access holes provided.
TYP 1" MIN DEPTH MIN 2/3" BM STL BM STL COL SHEAR PL W/ (3) 7/8"Ø ERECTION BOLTS ((2) FOR W8 OR W10) PL THICKNESS = BM WEB THICKNESS + 1/8", TYP CJP, T&B FLANGES STL BM STIFF PL = GREATER BEAM FLANGE THICKNESS + 1/8" (50 KSI) TYP T/FLR TYP 5/16 WELD ACCESS HOLE, TYP TYP (3) SIDES TYP 5/16 (3) SIDES TYP B B = 1/2 PL THICKNESS + 1/16" B TYP CONC OVER MTL FLOOR DECK
