A structural steel canopy beam connection features a 50 KSI web plate sized to the beam web thickness plus one-eighth inch. The web plate is secured with three seven-eighths inch diameter erection bolts on each side. The top and bottom flanges are joined with complete joint penetration welds incorporating typical weld access holes. A five-sixteenth inch fillet weld with one-inch returns is specified for the web connection. Additional five-sixteenth inch fillet welds are applied across three sides.

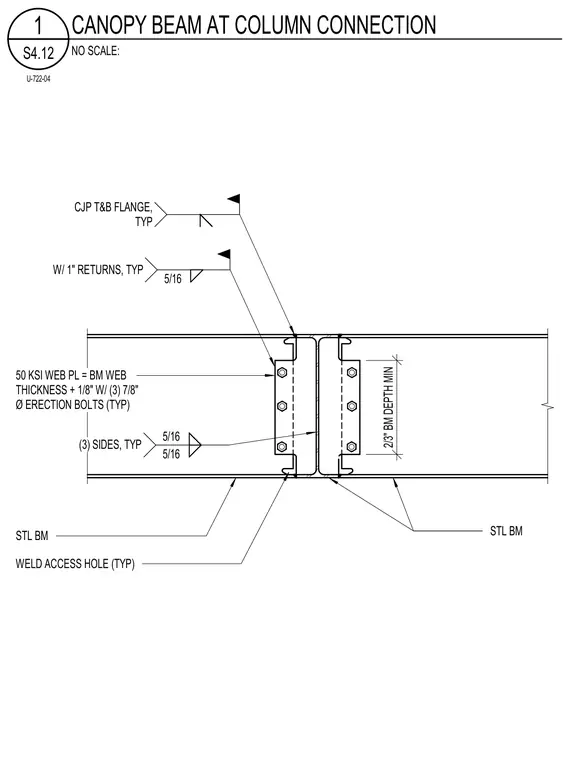

2/3" BM DEPTH MIN STL BM STL BM WELD ACCESS HOLE (TYP) 50 KSI WEB PL = BM WEB THICKNESS + 1/8" W/ (3) 7/8" Ø ERECTION BOLTS (TYP) 5/16 W/ 1" RETURNS, TYP CJP T&B FLANGE, TYP 5/16 5/16 (3) SIDES, TYP NO SCALE: S4.12 1 CANOPY BEAM AT COLUMN CONNECTION U-722-04
