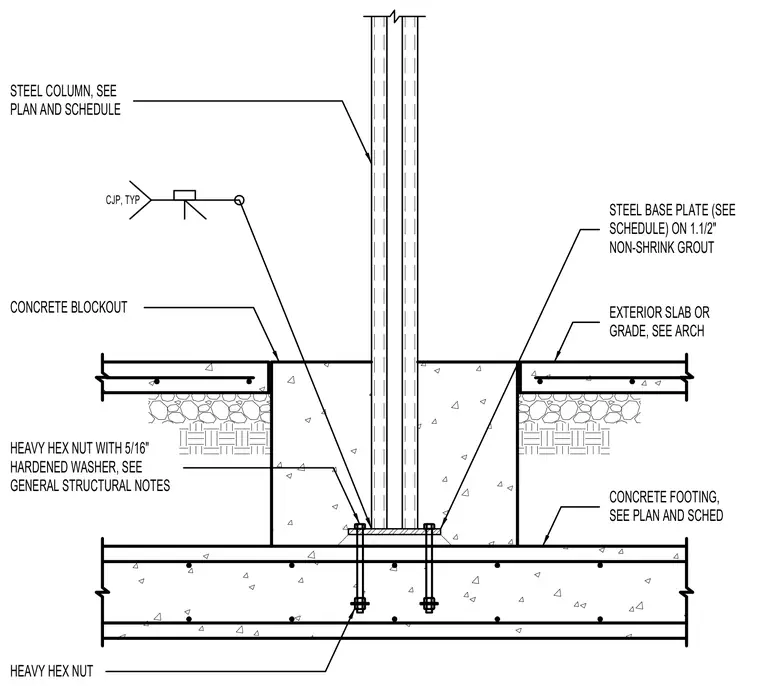

A steel column connects to a steel base plate resting on a one-and-a-half-inch layer of non-shrink grout over a concrete footing. The base plate is secured with anchor bolts equipped with heavy hex nuts and five-sixteenth-inch hardened washers per structural notes. A concrete blockout surrounds the base of the column, separated from the adjacent exterior slab or grade. Complete joint penetration welds are used typically for the column connection.
EXTERIOR SLAB OR GRADE, SEE ARCH STEEL BASE PLATE (SEE SCHEDULE) ON 1.1/2" NON-SHRINK GROUT CONCRETE FOOTING, SEE PLAN AND SCHED STEEL COLUMN, SEE PLAN AND SCHEDULE CONCRETE BLOCKOUT HEAVY HEX NUT HEAVY HEX NUT WITH 5/16" HARDENED WASHER, SEE GENERAL STRUCTURAL NOTES CJP, TYP
