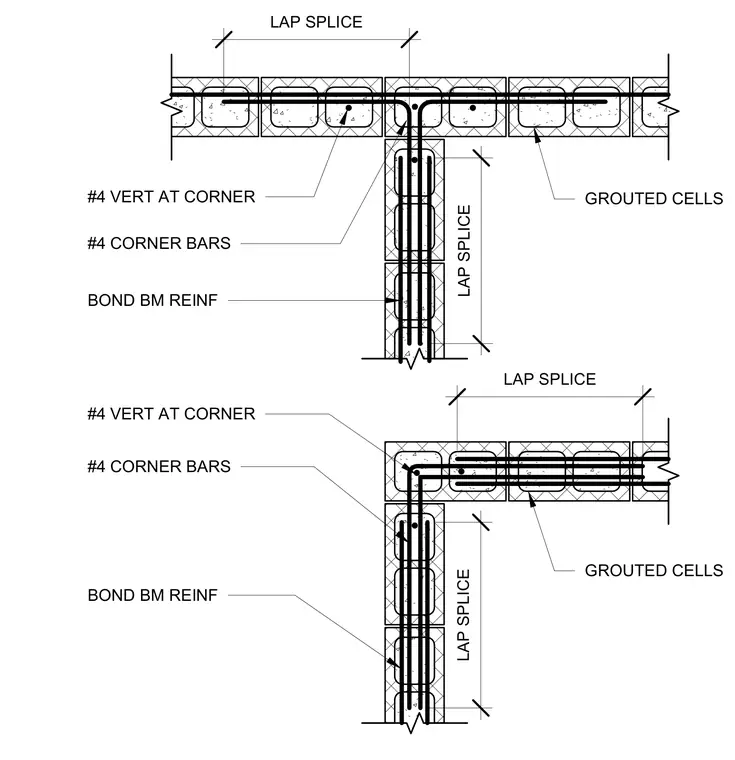

Concrete masonry unit wall intersections and corners are reinforced with number four vertical bars, number four corner bars, and bond beam reinforcement. Grouted cells receive continuous reinforcement tied with standard lap splices at intersecting wall junctions. The intersecting blocks maintain alignment through interlocking masonry courses while fully grouted cores anchor the vertical and horizontal steel.
LAP SPLICE LAP SPLICE LAP SPLICE LAP SPLICE GROUTED CELLS #4 VERT AT CORNER #4 CORNER BARS BOND BM REINF #4 VERT AT CORNER #4 CORNER BARS BOND BM REINF GROUTED CELLS
