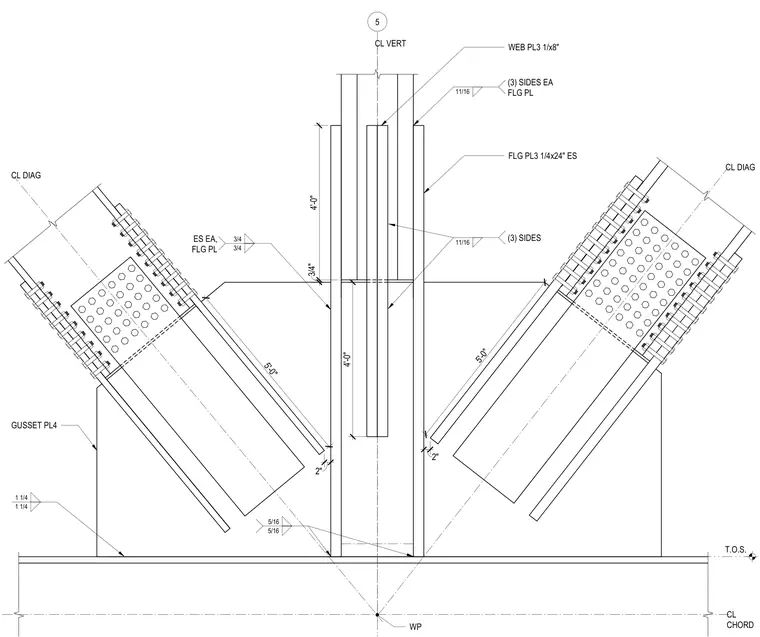

Heavy steel braced frame connection with diagonal members framing into a gusset plate and a vertical chord member. The assembly includes a main chord member with a gusset plate welded by five-sixteenth-inch fillet welds on each side. Two diagonal members frame into the gusset plate with bolted flange connections, utilizing flange plates measuring one and three-quarter by twenty-four inches on each side. A vertical member centered above features web and flange plates with eleven-sixteenth-inch fillet welds on three sides. Dimensions establish the spatial layout of the work point, member centerlines, and plate locations.
5 T.O.S. WP CL DIAG CL DIAG CL CHORD CL VERT (3) SIDES EA FLG PL 11/16 WEB PL3 1/x8" FLG PL3 1/4x24" ES 4'-0" 4'-0" 3/4" ES EA, FLG PL 3/4 3/4 (3) SIDES 11/16 5'-0" 2" 5'-0" 2" GUSSET PL4 1 1/4 1 1/4 5/16 5/16
