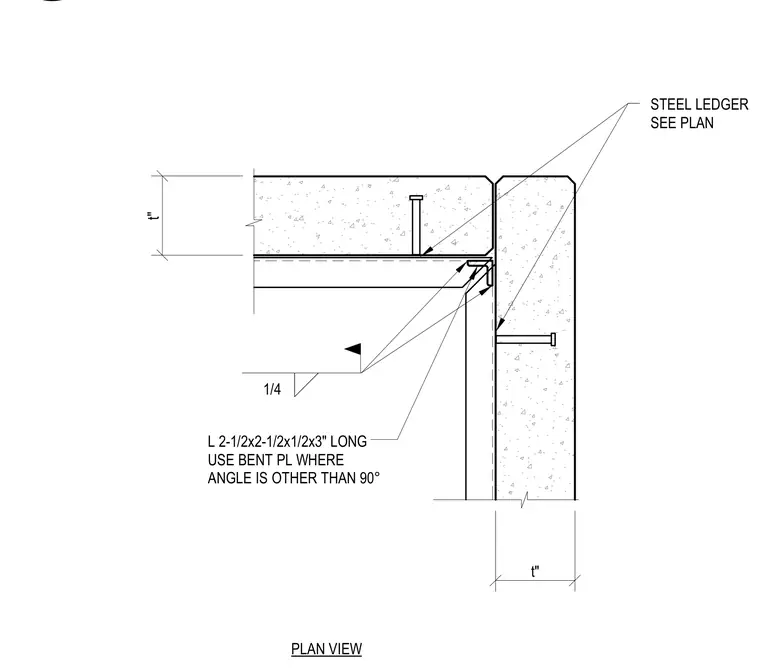

A steel ledger sized per plan is anchored to the concrete panel with embedded studs at the mitered corner. An angle measuring 2-1/2 by 2-1/2 by 1/2 inches by 3 inches long connects the assembly with a 1/4-inch fillet weld. A bent plate is specified for use where the corner angle is other than 90 degrees.
t" t" PLAN VIEW STEEL LEDGER SEE PLAN L 2-1/2x2-1/2x1/2x3" LONG USE BENT PL WHERE ANGLE IS OTHER THAN 90° 1/4
