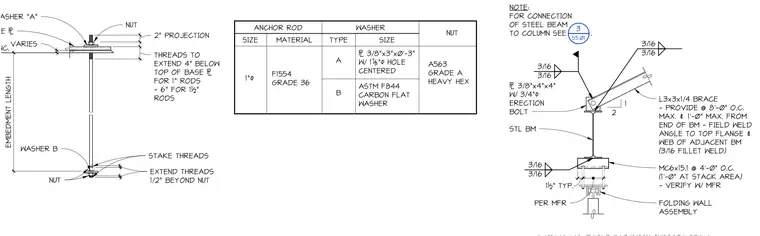

A structural steel beam supports a folding wall assembly below, featuring an MC6x15.1 channel spaced at four feet on center or one foot at the stack area. A three-eighths by four-inch plate with a three-quarter-inch erection bolt connects an L3x3x1/4 angle brace, which is provided at eight feet on center maximum and one foot maximum from the end of the beam. The angle is field welded to the top flange and web of the adjacent beam with a three-sixteenth-inch fillet weld. Anchor rods of one-inch diameter are detailed with ASTM F1554 Grade 36 material, heavy hex nuts, and washers. Threads extend four inches below the top of the base plate for one-inch rods and six inches for one-and-a-half-inch rods, with threads extended one-half inch beyond the nut and staked at the bottom embedment.
ANCHOR ROD WASHER SIZE TYPE 1" A NUT B A563 GRADE A HEAVY HEX ' 3/8"x3"x0'-3" W/ 1," HOLE CENTERED TOP OF CONC. VARIES BASE ' ' WASHER "A" EMBEDMENT LENGTH WASHER B NUT EXTEND THREADS 1/2" BEYOND NUT STAKE THREADS THREADS TO EXTEND 4" BELOW TOP OF BASE ' FOR 1" RODS - 6" FOR 1½" RODS 2" PROJECTION MATERIAL F1554 GRADE 36 ASTM F844 CARBON FLAT WASHER SIZE NUT NOTE: FOR CONNECTION OF STEEL BEAM TO COLUMN SEE . STL BM MC6x15.1 @ 4'-0" O.C. (1'-0" AT STACK AREA) - VERIFY W/ MFR FOLDING WALL ASSEMBLY 2 1 L3x3x1/4 BRACE - PROVIDE @ 8'-0" O.C. MAX. & 1'-0" MAX. FROM END OF BM - FIELD WELD ANGLE TO TOP FLANGE & WEB OF ADJACENT BM (3/16 FILLET WELD) 3/16 3/16 3/16 3/16 1½" TYP. PER MFR 3/16 3/16 ' 3/8"x4"x4" W/ 3/4" ERECTION BOLT 3 S5.01
