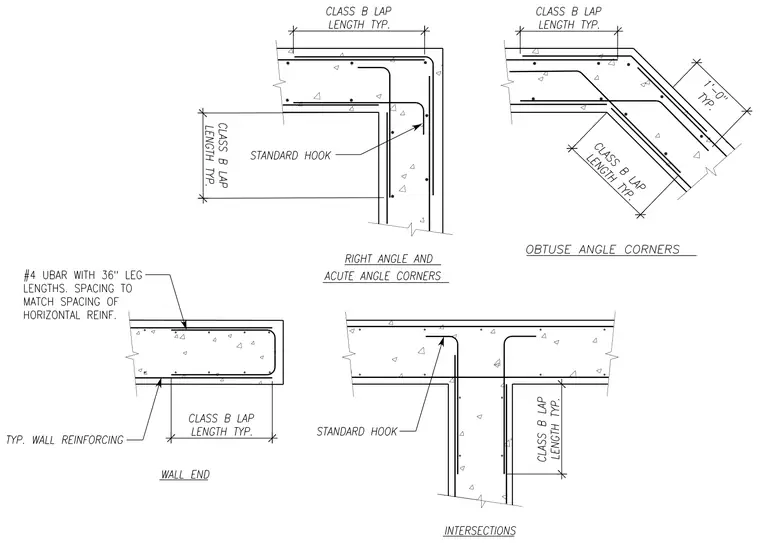

Concrete wall intersections and corners feature standard reinforcing layouts including Class B lap lengths and standard hooks. Wall ends incorporate number four U-bars with thirty-six inch leg lengths spaced to match horizontal reinforcement. Right-angle, acute-angle, and obtuse-angle corners detail the continuation and overlapping of internal and external reinforcing bars.
