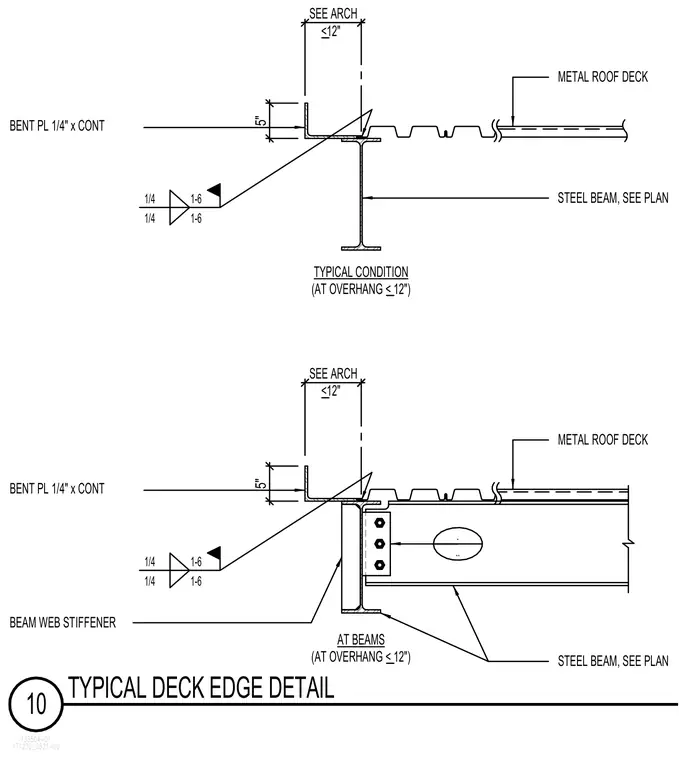

A metal roof deck edge condition is supported by a steel beam sized per plan. A continuous one-quarter-inch bent plate forms the fascia at the roof edge for overhangs less than twelve inches. Fillet welds secure the bent plate assembly to the supporting steel deck and framing. A beam web stiffener is provided at beam locations to reinforce the web against concentrated loads.
171220_S521-00 133504-01 10 TYPICAL DECK EDGE DETAIL SEE ARCH 5" 5" <12" SEE ARCH <12" . .. STEEL BEAM, SEE PLAN 1/4 1-6 BENT PL 1/4" x CONT STEEL BEAM, SEE PLAN BEAM WEB STIFFENER TYPICAL CONDITION AT BEAMS 1/4 1-6 1/4 1-6 1/4 1-6 (AT OVERHANG < 12") METAL ROOF DECK BENT PL 1/4" x CONT METAL ROOF DECK (AT OVERHANG < 12")
