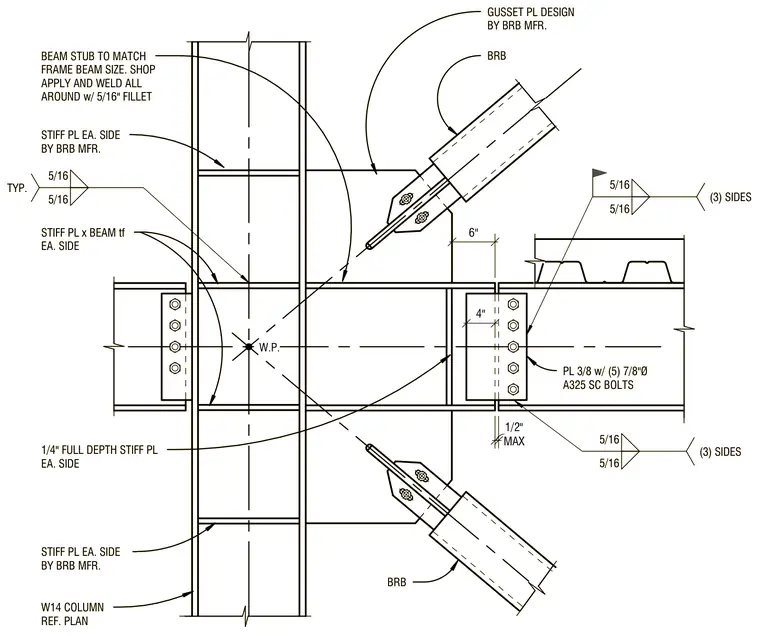

A W14 steel column connects to continuous frame beams and buckling-restrained braces using shop-applied and field-welded assemblies. Three-eighths-inch gusset plates connect the buckling-restrained braces using five seven-eighths-inch diameter A325 slip-critical bolts. One-quarter-inch full-depth stiffener plates are welded to each side of the column web aligned with the beam flanges using five-sixteenths-inch fillet welds on three sides. A beam stub matching the frame beam size is shop-applied and welded all around with a five-sixteenths-inch fillet weld.
W.P. BRB GUSSET PL DESIGN BY BRB MFR. BRB PL 3/8 w/ (5) 7/8"Ø A325 SC BOLTS MAX 1/2" 4" 6" W14 COLUMN REF. PLAN STIFF PL EA. SIDE BY BRB MFR. 5/16 5/16 (3) SIDES 5/16 5/16 TYP. BEAM STUB TO MATCH FRAME BEAM SIZE. SHOP APPLY AND WELD ALL AROUND w/ 5/16" FILLET STIFF PL EA. SIDE BY BRB MFR. STIFF PL x BEAM tf EA. SIDE 1/4" FULL DEPTH STIFF PL EA. SIDE 5/16 5/16 (3) SIDES W.P. BRB GUSSET PL DESIGN BY BRB MFR. BRB PL 3/8 w/ (5) 7/8"Ø A325 SC BOLTS MAX 1/2" 4" 6" W14 COLUMN REF. PLAN STIFF PL EA. SIDE BY BRB MFR. 5/16 5/16 (3) SIDES 5/16 5/16 TYP. BEAM STUB TO MATCH FRAME BEAM SIZE. SHOP APPLY AND WELD ALL AROUND w/ 5/16" FILLET STIFF PL EA. SIDE BY BRB MFR. STIFF PL x BEAM tf EA. SIDE 1/4" FULL DEPTH STIFF PL EA. SIDE 5/16 5/16 (3) SIDES
