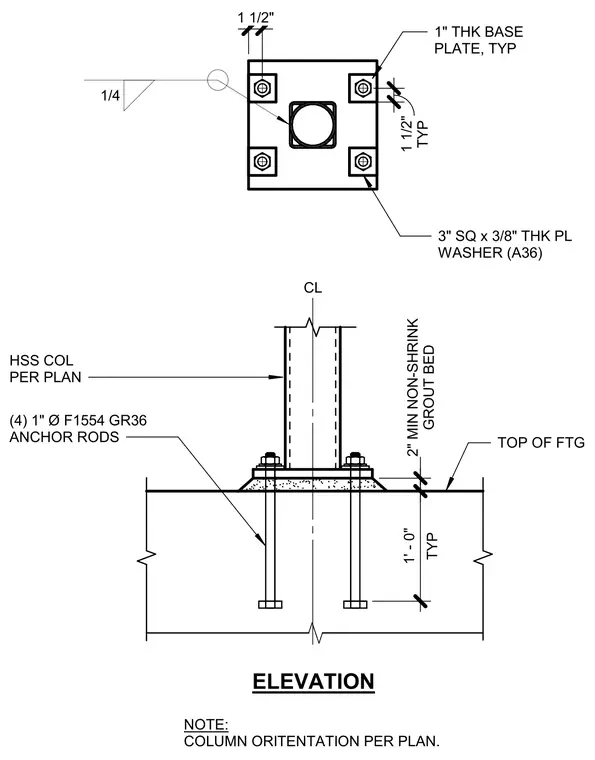

A hollow structural section column per plan is welded to a one-inch-thick base plate with a quarter-inch fillet weld. The assembly is anchored to the concrete footing using four one-inch-diameter ASTM F1554 Grade 36 anchor rods embedded one foot zero inches typical. Each anchor rod includes a three-inch square by three-eighths-inch-thick A36 plate washer. A two-inch minimum non-shrink grout bed is provided beneath the base plate above the top of the footing. Column orientation follows the structural plan.
HSS COL PER PLAN CL 1" THK BASE PLATE, TYP ELEVATION GROUT BED 2" MIN NON-SHRINK TYP 1' - 0" 3" SQ x 3/8" THK PL WASHER (A36) 1/4 (4) 1" Ø F1554 GR36 ANCHOR RODS 1 1/2" NOTE: COLUMN ORITENTATION PER PLAN. TOP OF FTG TYP 1 1/2"
