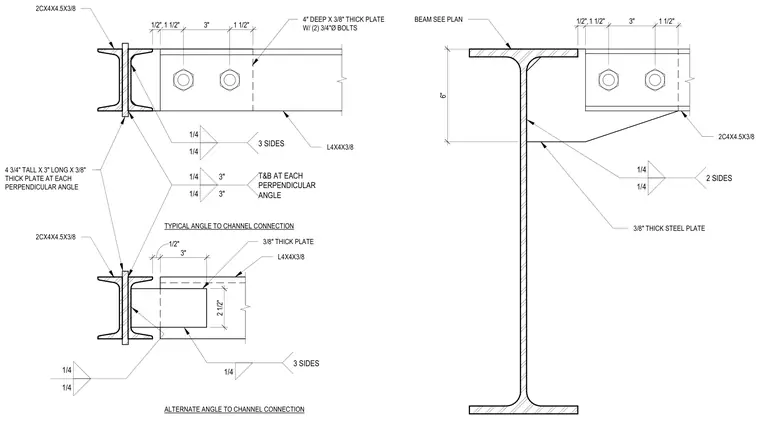

Typical and alternate angle-to-channel framing connections are supported by a steel beam sized per plan. The connection utilizes L4x4x3/8 angles and 2C4x4.5x3/8 channels joined with three-eighths-inch thick steel plates welded on two or three sides with quarter-inch fillet welds. Two three-quarter-inch diameter bolts fasten the framing members through a four-inch deep by three-eighths-inch thick plate. Additional four-and-three-quarter-inch tall by three-inch long by three-eighths-inch thick plates are provided top and bottom at each perpendicular angle.
1/2" 1 1/2" 3" 1 1/2" 1/4 3" 1/4 3" T&B AT EACH PERPENDICULAR ANGLE 4 3/4" TALL X 3" LONG X 3/8" THICK PLATE AT EACH PERPENDICULAR ANGLE 1/4 1/4 3 SIDES 4" DEEP X 3/8" THICK PLATE W/ (2) 3/4"Ø BOLTS L4X4X3/8 2CX4X4.5X3/8 1/2" 1 1/2" 3" 1 1/2" 6" 2C4X4.5X3/8 BEAM SEE PLAN 1/4 1/4 2 SIDES 3/8" THICK STEEL PLATE TYPICAL ANGLE TO CHANNEL CONNECTION ALTERNATE ANGLE TO CHANNEL CONNECTION L4X4X3/8 2CX4X4.5X3/8 1/4 1/4 1/2" 3" 2 1/2" 1/4 3 SIDES 3/8" THICK PLATE
