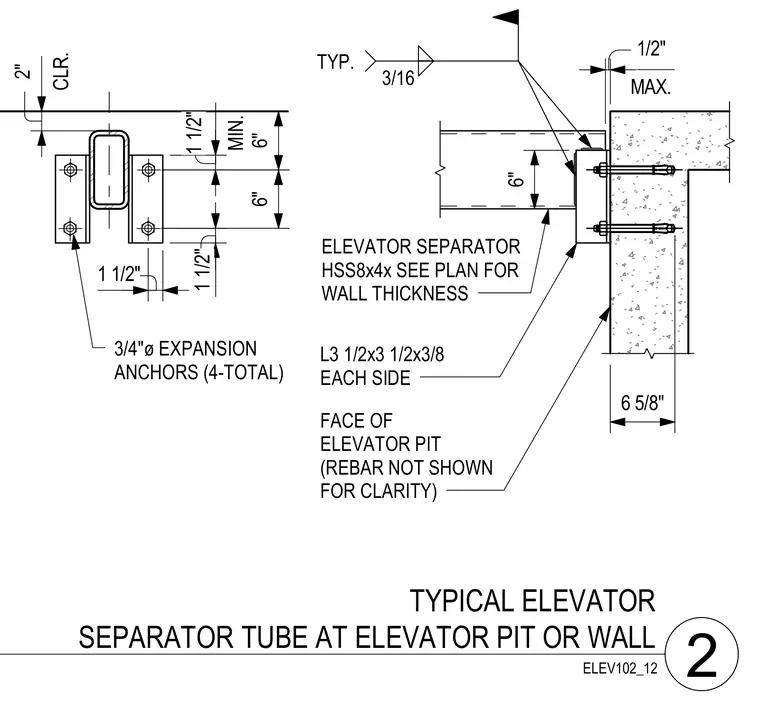

An HSS8x4 hollow structural section serves as the elevator separator tube and connects to the face of the reinforced concrete elevator pit wall. Two L3 1/2x3 1/2x3/8 structural steel angles are welded to each side of the HSS member with 3/16-inch fillet welds. Four total 3/4-inch diameter expansion anchors secure the assembly to the concrete wall. The concrete reinforcing bars are omitted from the view for clarity.
3/4"ø EXPANSION ANCHORS (4-TOTAL) ELEVATOR SEPARATOR HSS8x4x SEE PLAN FOR WALL THICKNESS L3 1/2x3 1/2x3/8 EACH SIDE FACE OF ELEVATOR PIT (REBAR NOT SHOWN FOR CLARITY) ELEV102_12 3/16 TYP. 6 5/8" CLR. 2" MIN. 1 1/2" 1 1/2" 6" 6" 1 1/2" 6" MAX. 1/2" 2 TYPICAL ELEVATOR SEPARATOR TUBE AT ELEVATOR PIT OR WALL
