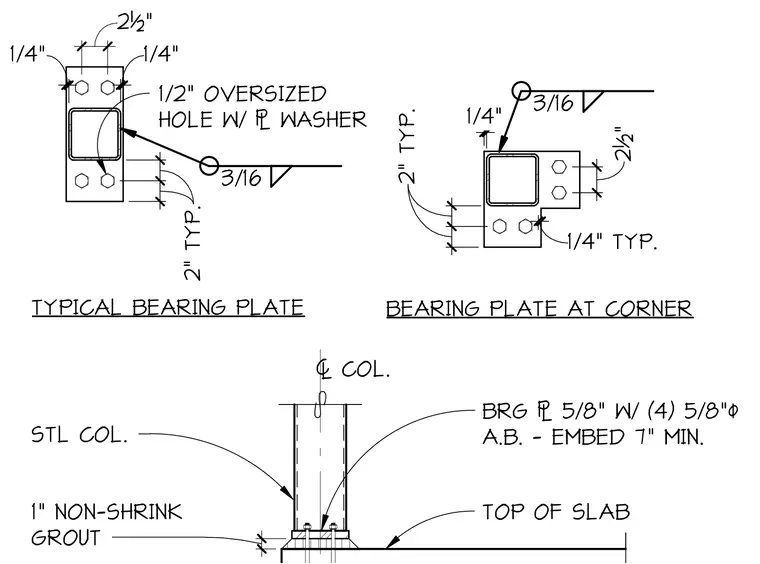

A steel column bears onto a five-eighths inch thick bearing plate supported by a one-inch layer of non-shrink grout above the top of the concrete slab. Four five-eighths inch diameter anchor bolts embed a minimum of seven inches into the foundation. The base plate features half-inch oversized holes with plate washers. Welds connect the steel column to the base plate using three-sixteenths inch fillet welds. Both typical interior base plate and corner bearing plate configurations are detailed with edge clearances and bolt spacings.
1" NON-SHRINK GROUT STL COL. TOP OF SLAB BRG , 5/8" W/ (4) 5/8"/ A.B. - EMBED 7" MIN. 1 COL. BEARING PLATE AT CORNER TYPICAL BEARING PLATE 2" TYP. 2" TYP. 2½" 1/4" TYP. 2½" 2" TYP. 2" TYP. 1/4" 1/2" OVERSIZED HOLE W/ , WASHER 3/16 1/4" 3/16 1/4"
