Structural · S-AX7Z6

Shear Transfer at Floor Trusses

Materials

Elements

About this detail

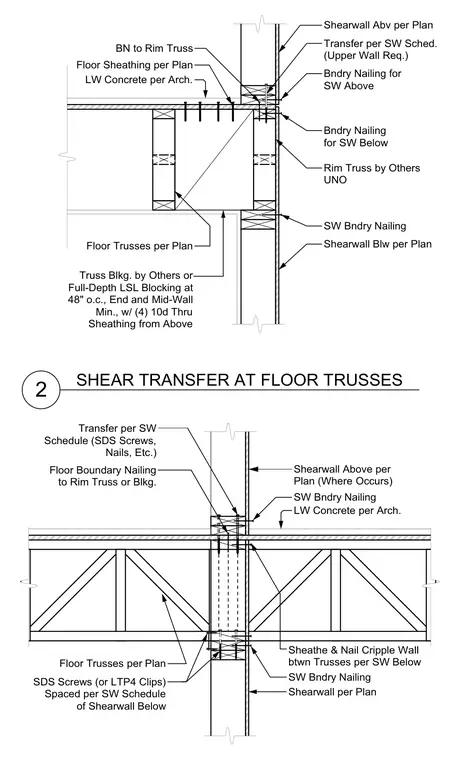

Floor truss level shear transfer connection between upper and lower wood shear walls. Floor trusses span across the assembly with a rim truss or full-depth laminated strand lumber blocking installed at forty-eight inches on center minimum. Floor sheathing and lightweight concrete topping tie into the upper framing per architectural and structural plans. Boundary nailing connects the upper and lower shear walls to the rim assembly using designated fasteners, structural load screws, or framing clips as specified in the shear wall schedule.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
