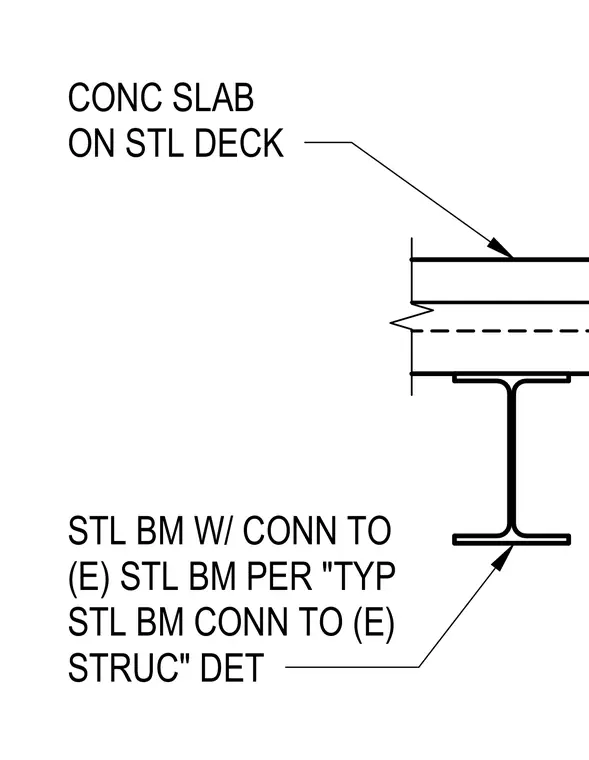

A concrete slab on steel deck bears directly on a steel beam. The steel beam features a connection to an existing structural steel beam per typical detail requirements.
STL BM W/ CONN TO (E) STL BM PER "TYP STL BM CONN TO (E) STRUC" DET CONC SLAB ON STL DECK
