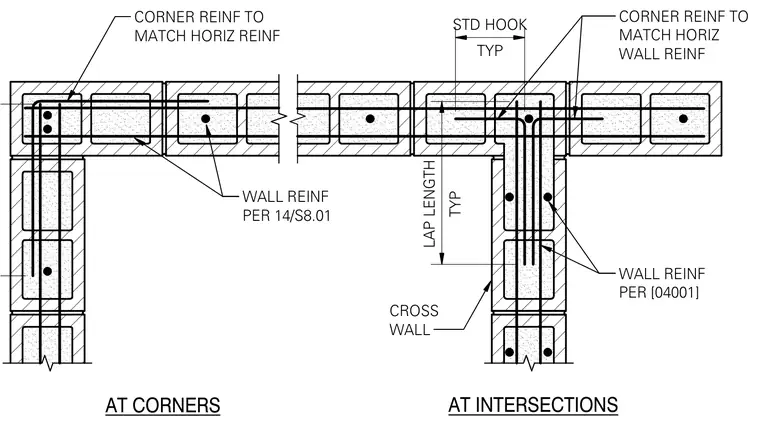

Concrete masonry unit wall corners and cross wall intersections feature horizontal wall reinforcing sized per structural plans with standard hooks and lap lengths. Corner reinforcing matches horizontal wall reinforcing and extends around corners with standard hooks. At cross wall intersections, continuous horizontal bars and hooked tie bars lap with wall reinforcing.
AT CORNERS AT INTERSECTIONS CORNER REINF TO MATCH HORIZ REINF CORNER REINF TO MATCH HORIZ WALL REINF TYP LAP LENGTH TYP STD HOOK WALL REINF PER 14/S8.01 CROSS WALL WALL REINF PER [04001]
