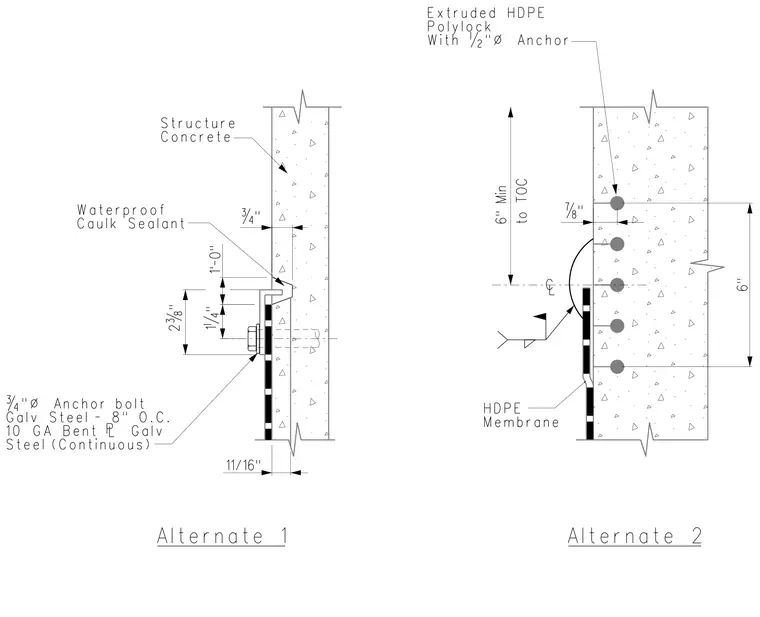

Alternate one features a continuous ten gauge galvanized steel bent plate secured to the structural concrete with three-quarter-inch diameter galvanized steel anchor bolts spaced at eight inches on center, sealing a waterproofing membrane with a waterproof caulk sealant. Alternate two utilizes an extruded high-density polyethylene polylock anchored into the concrete with half-inch diameter anchors spaced six inches on center and positioned six inches minimum to top of concrete. Both alternatives provide a secure termination and watertight seal for below-grade waterproofing assemblies.
1 " Alternate 1 Alternate 2 11/16" 1 ’- 0 " t o T O C 6 " M i n 6 " 2 " " Ø With "Ì Anchor Polylock Extruded HDPE Concrete Structure Membrane HDPE Steel (Continuous) 10 GA Bent ˚ Galv Galv Steel - 8" O.C. "Ì Anchor bolt Caulk Sealant Waterproof "
